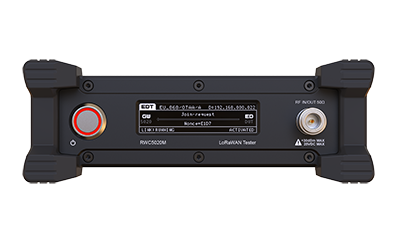

    RWC5020M-64 Tester for LoRa® / LoRaWAN® is a compact all-in-one tester offered with upto 64/96 channels, providing a perfect solution for testing and measuring LoRa® and LoRaWAN® technology. It is fully suitable for research and development (R&D), quality control (QC), and manufacturers. It offers various test functions that can be performed in signaling mode, such as activation procedures, as well as non-signaling mode. A fully automated PC software will assist users in testing and debugging their devices by conducting pre-certification tests specified by the LoRa Alliance®.

      LoRaWAN®  COMPLIANCE


    Confirming that the end device meets the functional requirements of the LoRaWAN®​ protocol specification

    RWC5020M pre-certification test is recommended for the purpose of pre-qualification. Since RWC5020B supports 8/16/64/96 channels, it can measure all the functions and performance of the DUT without channel limitations depending on the region.

    Supported Pre-certification Test Option

    LoRaWAN Specification 1.0.2:​

     LoRaWAN® European EU 863-870MHz Region End Device Certification Requirements

     - LoRaWAN® US + Canada 902-928MHz Region End Device Certification Requirements

     - LoRaWAN® Asia AS 923MHz Region End Device Certification Requirements

     - LoRaWAN® South Korea 920-923MHz Region End Device Certification Requirements

     - LoRaWAN® India IN865-867MHz Region End Device Certification Requirements



    LoRaWAN Specification 1.0.4:​

    - LoRaWAN 1.0.4 End Device Certification Requirements for All Regions

    - Supported Regions: EU863-870, US 902-928, AS923-1, AS923-2, AS923-3, AS923-4, KR920-923, IN865-867,

    AU915-928, RU864-870, and EU433



    Supported LoRaWAN®  Region

      EU 868 // EU 433 // US 915 // AU 915 // CN 470 // KR 920 // AS 923 // IN 865 // RU 864



    Supported LoRaWAN®  Protocol

     - Compatible with LoRaWAN® version of V1.0.2, V1.0.3, V1.0.4 and V1.1.0

     - Class A/B/C

     - Application Layer Package Certification Test

    - FUOTA test

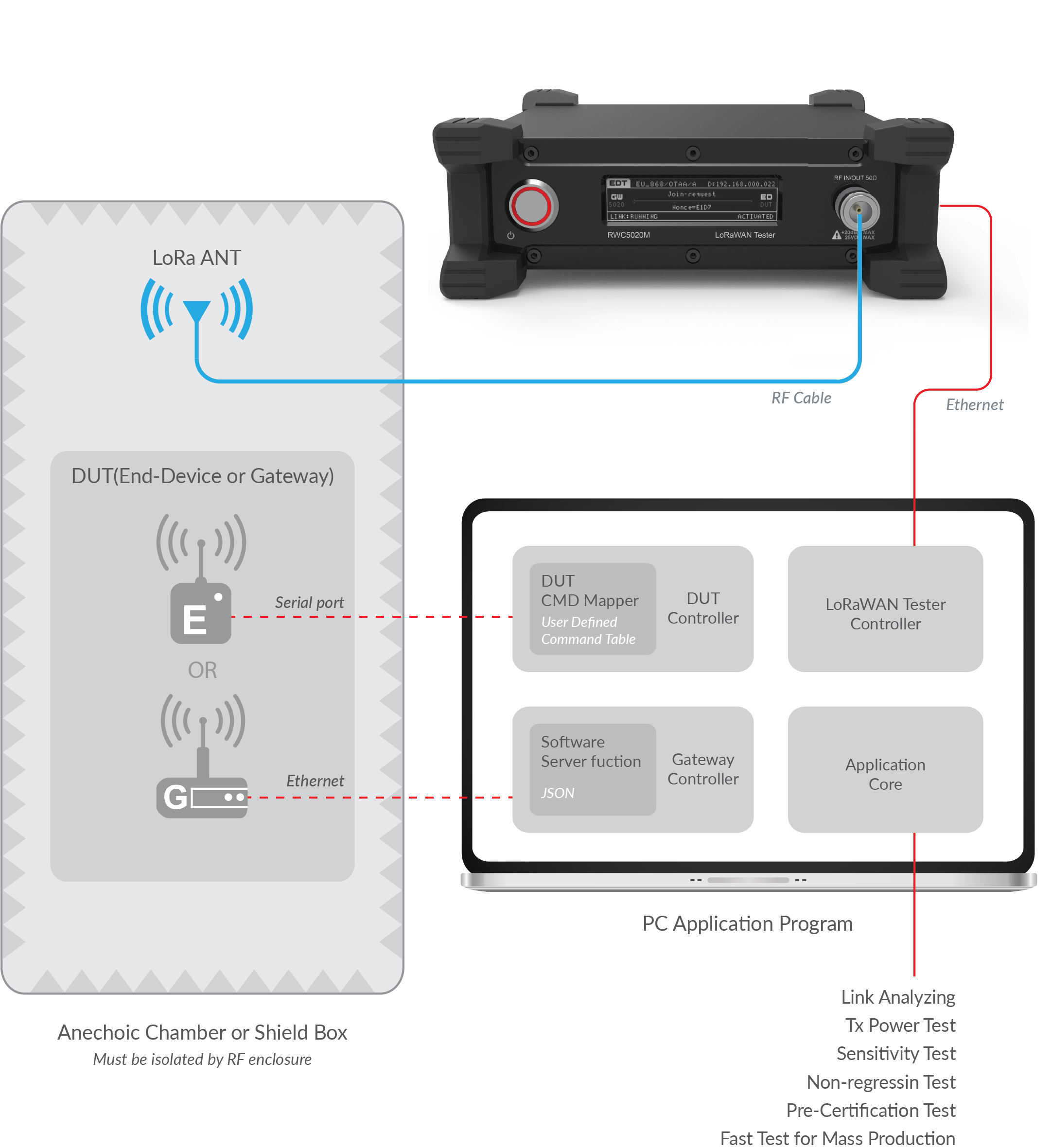

      LoRa® /LoRaWAN® TEST SOLUTIONS



    Protocol & Functional Test

     - Support of LoRaWAN® Pre-Certification Tests for all regions

     - Scenarios for transmission of MAC commands and user application data

     - FUOTA Test with user firmware binaries

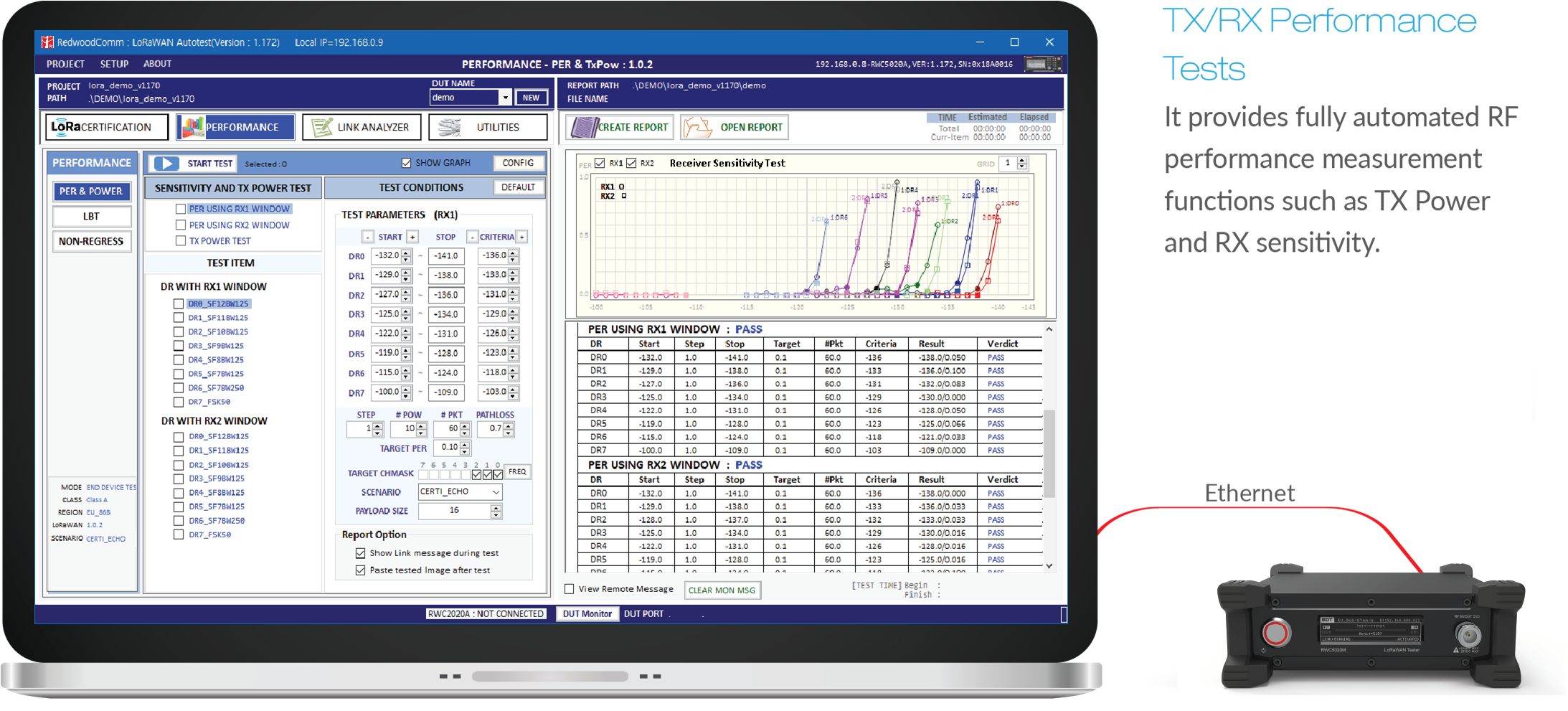

    RF Test Solutions

     - RF Performance Tests for End-device – TX Power and RX Sensitivity (downlink: RX1, RX2, RXC or Ping-slot)

     - RF Performance Tests for Gateway – TX Power and RX Sensitivity (uplink)

     - Semtech’s Non-regression Tests for Gateway – integrated with RWC2020A Interference Generator

     - LBT Test Solution for end-devices and gateways – integrated with RWC2020A Interference Generator


    Manufacturing Test Solutions

     - ​Signal Generator and Signal Analyzer

     - ​Frequency Measurement Function

     - Separate TX/RX Tests with DUT controls – power, frequency and sensitivity

     - Simultaneous TX/RX Tests (MFG) without wired DUT controls


    PC Application Software

     - Fully Automated for Execution of All Built-in Functions

     - Measurement and Test Data Logging

     - MAC and Application Protocol Messages Logging
